STRUT CHANNELS

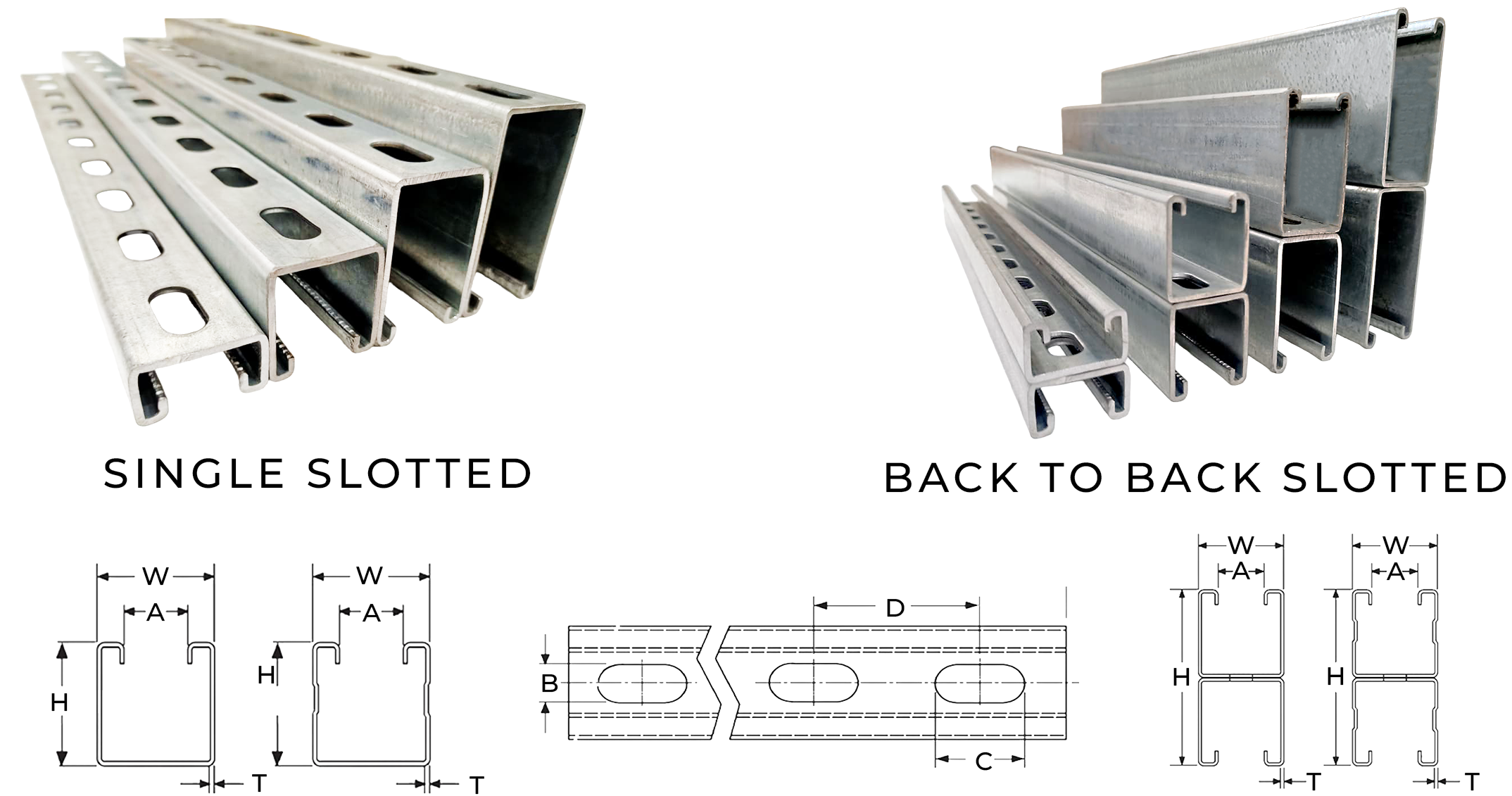

| DIMENSIONAL DETAILS | ||||
| Particulars | Height (H) | Width (W) | ||
| Unit | INCHES | MM | INCHES | MM |

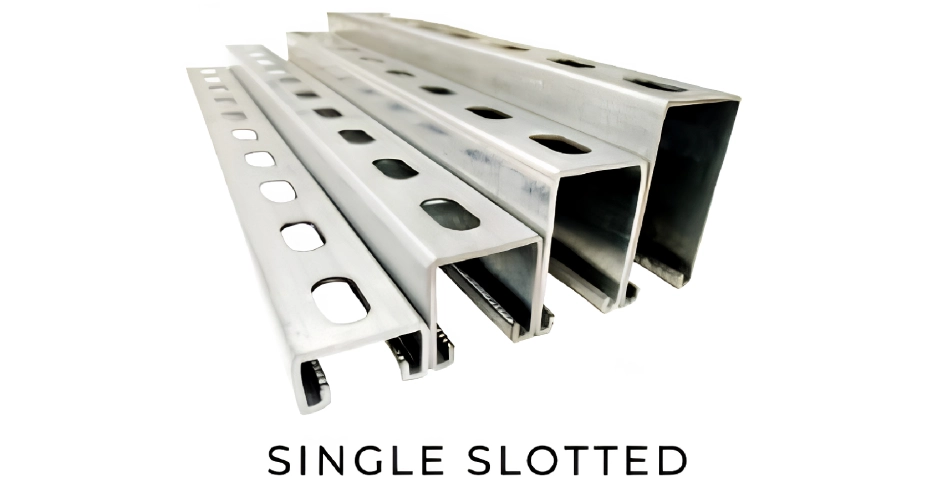

| Single Section | 13/16" | 21 | 1-5/8" | 41 |
| 1-5/8" | 41 | 1-5/8" | 41 | |
| 2-7/16" | 62 | 1-5/8" | 41 | |
| 3-1/4" | 82 | 1-5/8" | 41 | |

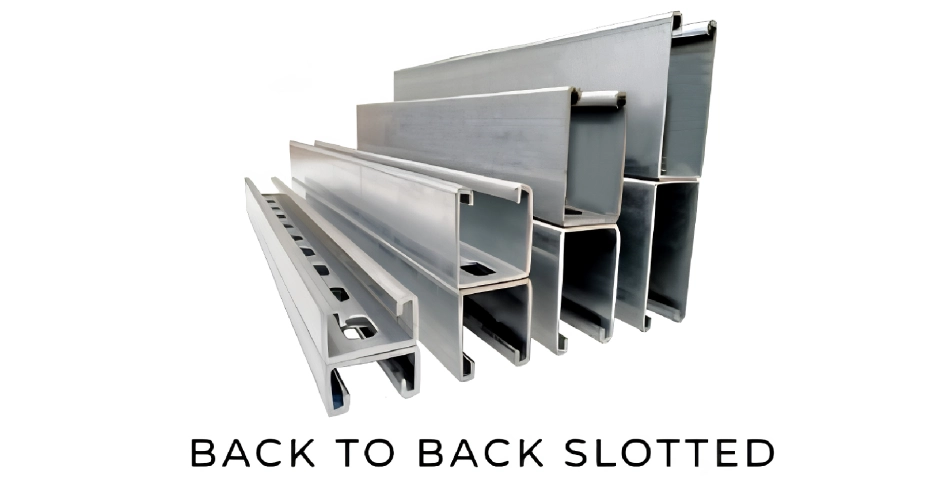

| Double Section | 1-5/8" | 42 | 1-5/8" | 41 |
| 3-1/4" | 82 | 1-5/8" | 41 | |
| 4-7/8" | 124 | 1-5/8" | 41 | |
| 6-7/16" | 164 | 1-5/8" | 41 | |
| Thickness (T): 1.5 mm (16 Guage), 2.0 mm (14 Guage), 2.5 mm (12 Guage) | ||||
| Gap Between Lips (A): 22 mm (7/8'' inches) | ||||

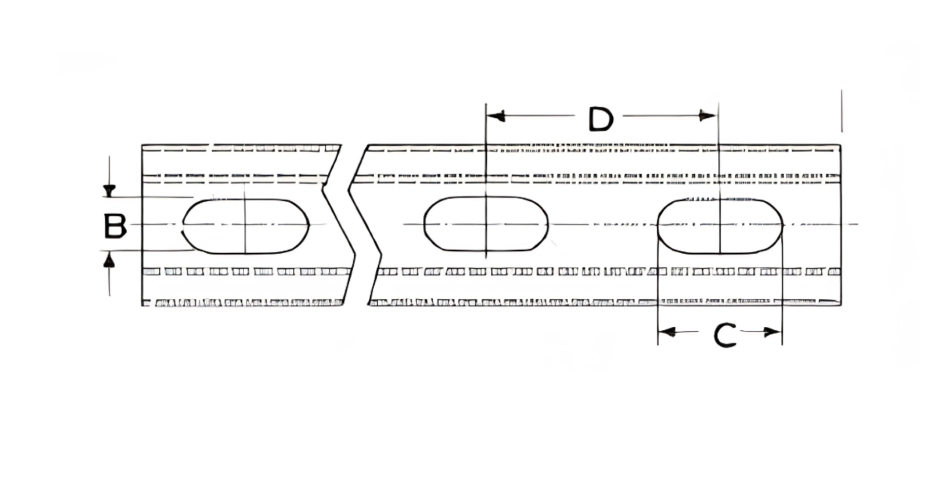

| Slot Size (B x C): 14 mm x 29 mm (9/16 x 1-1/8'' inches) | ||||
| Slot Distance (D): 50 mm (1-15/16'' inches) | ||||
MATERIAL SPECIFICATION
Pre-Galvanized Steel
- India (IS): IS 277:2018 (Z120-Z275, GP250/GPL)
- USA (ASTM): ASTM A653 (G40/G60/G90)
- Europe (EN): EN 10346 (Z120-Z275)
- UAE (Common Practice): Follows ASTM A653 or EN 10346
- Yield Strength (YS): 250-310 MPa
- Ultimate Tensile Strength (UTS): 350-400 MPa
- Zinc Coating Type: Hot Dip Zinc (Continuous Line)
- Zinc Coating Class: Z120-Z275 / G40-G90
- Zinc Purity: 99.5%
AZ150 Coated Steel
- India (IS): IS 15961 (Al-Zn Coated)
- USA (ASTM): ASTM A792 (AZ150)
- Europe (EN): EN 10346 (ZA150 or ZM120)
- UAE (Common Practice): Follows ASTM A792 or EN 10346
- Yield Strength (YS): 550 MPa
- Ultimate Tensile Strength (UTS): Up to 770 MPa
- Zinc Coating Type: Alu-Zinc (AZ150)
- Zinc Coating Class: AZ150 (150 GSM both sides)
- Zinc Purity: 55% Al, 43.4% Zn, 1.6% Si
Hot Rolled Carbon Steel
- India (IS): IS 2062 (Grade A/B/C)
- USA (ASTM): ASTM A36
- Europe (EN): EN 10025 (S235JR/S275JR)
- UAE (Common Practice): ASTM A36 or EN 10025
- Yield Strength (YS): 250-310 MPa
- Ultimate Tensile Strength (UTS): 350-400 MPa
- Zinc Coating Type: Hot Dip Galvanized
- Zinc Coating Class: 60-90 µm avg.
- Zinc Purity: 99.5%
Hot Dip Galvanized Steel
- India (IS): IS 4759 / IS 2629
- USA (ASTM): ASTM A123
- Europe (EN): EN ISO 1461
- UAE (Common Practice): ASTM A123 or EN ISO 1461
- Yield Strength (YS): 250-310 MPa
- Ultimate Tensile Strength (UTS): 350-400 MPa
- Zinc Coating Type: Hot Dip Galvanized (Batch Process)
- Zinc Coating Class: 60-90 µm avg.
- Zinc Purity: 99.5%
Zinc-Magnesium Coated
- India (IS): IS 18513
- USA (ASTM): ASTM A1046 (ZM Coated)
- Europe (EN): EN 10346 (ZM120/ZM175)
- UAE (Common Practice): Follows EN 10346 or ASTM A1046
- Yield Strength (YS): 250–550 MPa
- Ultimate Tensile Strength (UTS): 370–600 MPa
- Zinc Coating Type: Zinc-Magnesium-Aluminium Alloy
- Zinc Coating Class: ZM70–ZM120 (10–20 µm)
- Zinc Purity: Zn-Al-Mg Alloy Coating (93.5% Zn, 3.5% Al, 3%)
CANTILIVER ARM

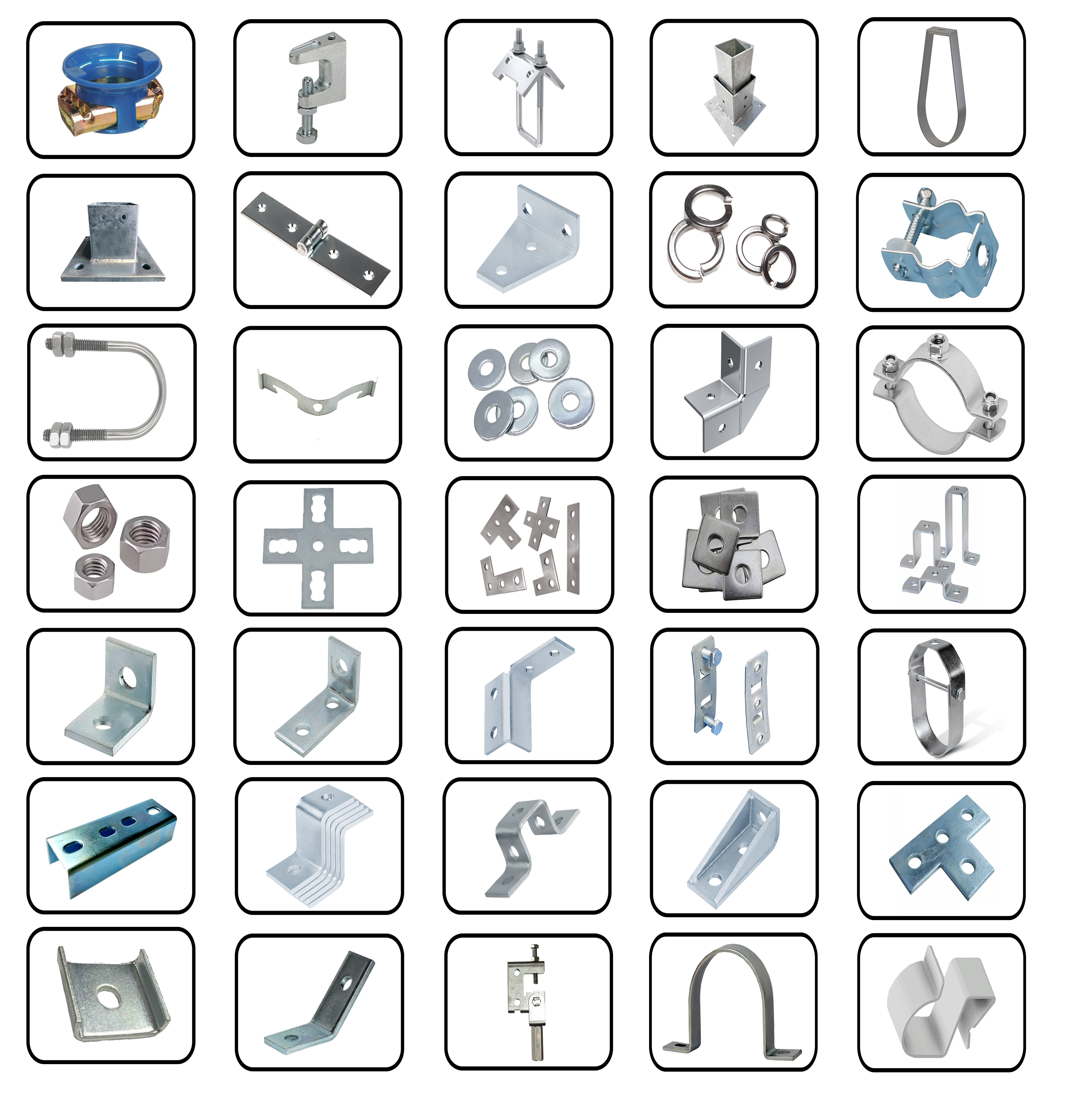

ACCESSORIES

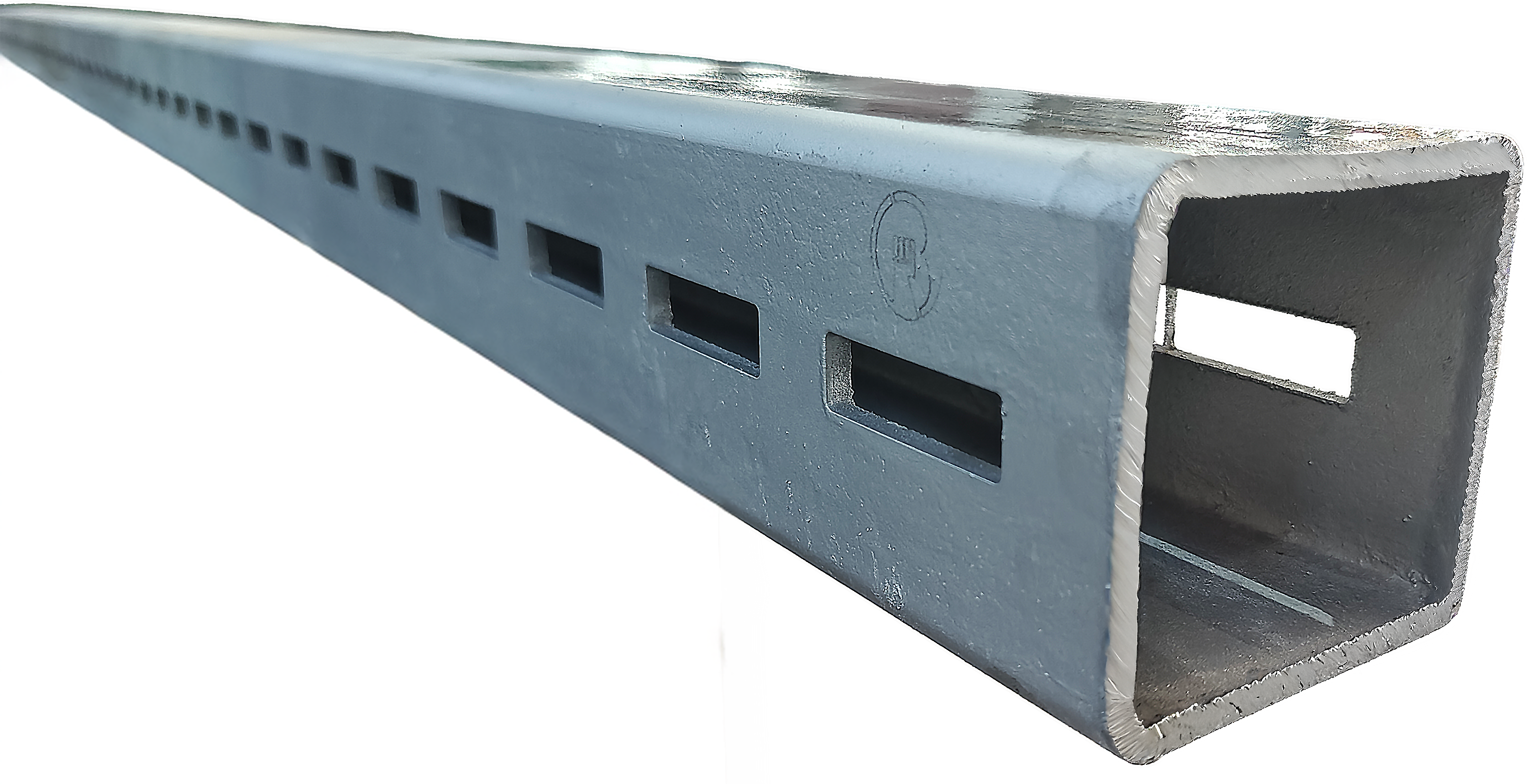

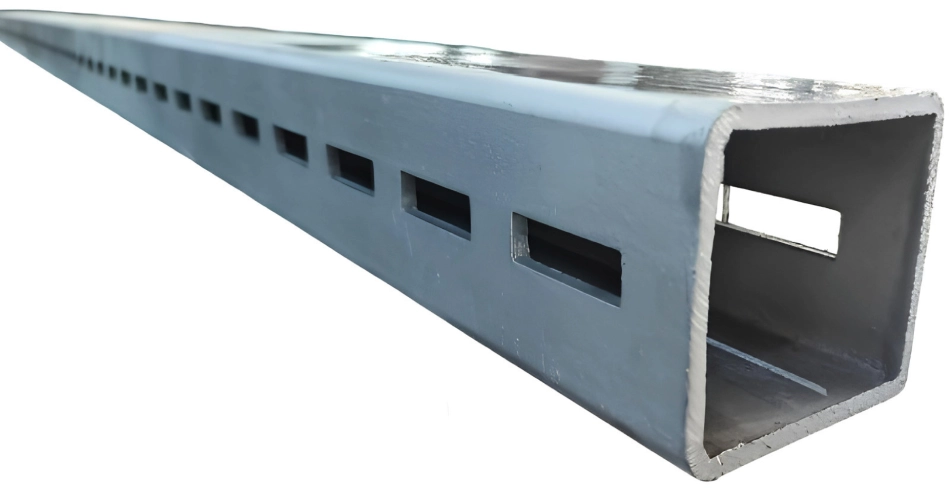

BOX PROFILE SECTION
BOX PROFILE SIZES |
THICKNESS |
||
MM |
INCHES |
MM |
GUAGE |
32 × 32 |
1 ¼″ × 1 ¼″ |
2.6 |
12 |
40 × 40 |
1 ½″ × 1 ½″ |
2.3 |
13 |
60 × 60 |
2 ⅜″ × 2 ⅜″ |
3.2 |
10 |
72 × 72 |
2 ⅞″ × 2 ⅞″ |
3 |
11 |
91 × 91 |
3 ⅝″ × 3 ⅝″ |
3.6 |
9 |
91 × 91 |
3 ⅝″ × 3 ⅝″ |
4 |
8 |
100 × 100 |
4″ × 4″ |
4 |
8 |
100 × 100 |
4″ × 4″ |
5 |
7 |
113 × 113 |
4 ½″ × 4 ½″ |
5 |
7 |
113 × 113 |
4 ½″ × 4 ½″ |
6 |
6 |
132 × 132 |
5 3⁄16″ × 5 3⁄16″ |
5 |
7 |
132 × 132 |
5 3⁄16″ × 5 3⁄16″ |
6 |
6 |
|
Surface Finish : HOT DIP (Avg. 80 µ) |
|||
